Back to an overivew of flat mapping and pictures of flat maps of the cerebellum created in the Euclidean and hyperbolic planes and on a sphere or to some hyperbolic maps of the Earth.

Here are some older pictures of flat maps of the human cerebellum. These are from early 1999. As our methods improve and become refined, the maps may change. These flat maps of the cerebellum used a different cut along the brainstem. It was a "zipper cut" that travelled along one side of the purple line shown in this image and back along the other side of it, pinning the "zipper" at two points along the brain stem boundary. This type of cut has now been abondoned and I now remove a "patch" corresponding to the brain stem and fourth ventricle.

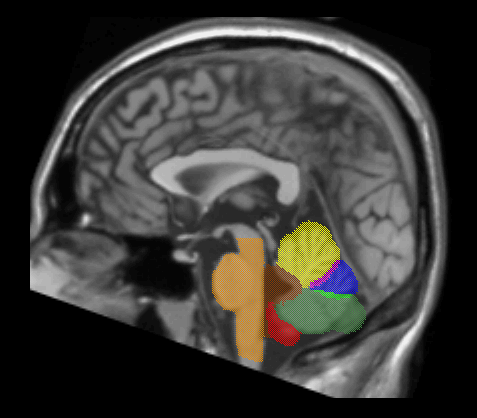

In this picture, the cerebellum has been identified and various regions have been color coded for identification purposes.

Sagittal Slice of Cerebellum

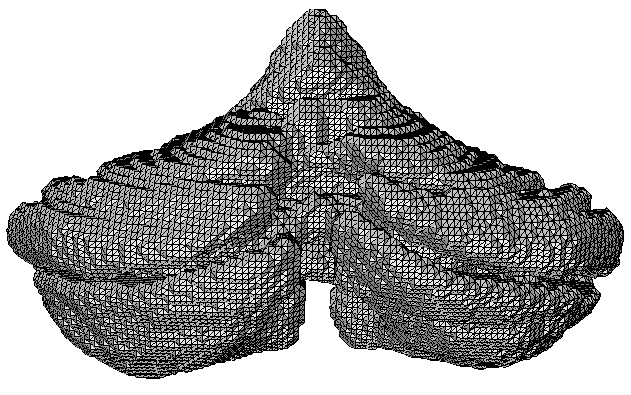

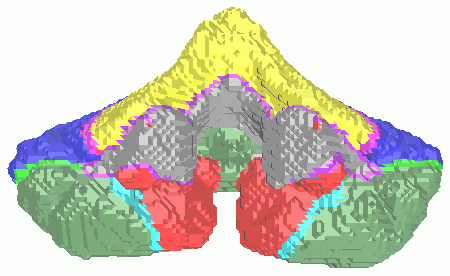

Rendered View of Cerebellum from Front Triangulated
Representation of Cerebellum from Back
These pictures show the surface of the cerebellum from the front (color coded according to anatomical regions) and from the back (showing the triangulated surface). Either side of the purple line corresponds to the cut that was used for creating the following flat maps.

These are some example of flat maps of the cerebellum which I have created using this older approach. Functional PET information was obtained from a target interception task and imposed on the maps using a hot metal color scale with white corresponding to the peak activation.

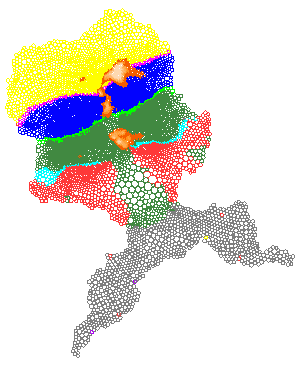

Euclidean Flat Map with Functional Regions
Euclidean Flat Map with Functional Regions.

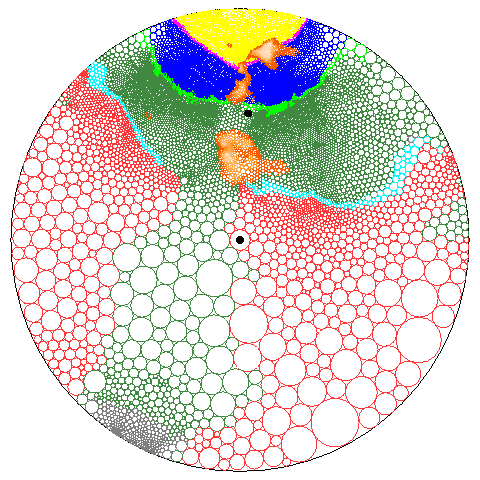

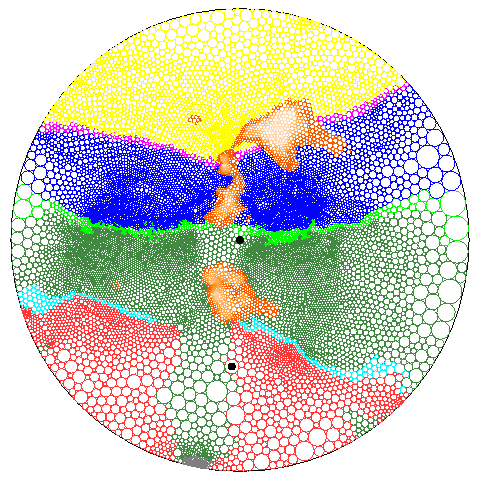

Hyperbolic Flat Map with
Functional Regions Hyperbolic Flat Map with
Alternate Focus
Hyperbolic Flat Maps with different Möbius transformations applied.

Spherical Map with
Functional Regions Rotated View of Spherical
Map
Two different views of sphereical flat maps.

For other pictures of maps on the sphere, click here.
